| System |
| Main Processor |
Industrial-grade processor |
| Operating System |
Embedded Linux |
| Operating Interface |
Web; Local GUI |
| QuickPick 2.0 |
| QuickPick 2.0 AI by
Recorder (Number of
Channels) |
2 channels |
| Perimeter Protection |
| Perimeter Performance AI
by Recorder (Number of
Channels) |
Advanced Mode: 2 channels, 10 IVS rules for each
channel
General Mode: 4 channels, 10 IVS rules for each
channel |
| Face Detection |
| Face Attributes |
6 attributes |
| Face Detection
Performance
of AI by
Recorder (Number of
Channels) |
2 channels(up to 8 face images/s each channel) |
| Privacy Protection |
| Privacy Protection
Performance of AI by
Recorder (Number of
Channels) |
1 channel |
| Face Recognition |
| Face Database Capacity |
Up to 10 face databases with 20,000 images. |
| Face Recognition
Performance of AI by
Recorder (Number of
Channels) |
2 channels |
| SMD Plus |
| SMD Plus by Recorder |
4 channels: Secondary filtering for human and vehicle,
reducing false alarms caused by leaves, rain and lighting
condition change |
| SMD Plus by Camera |
8 channels |
| AI Video Quality Analytics |
| AI Video Quality Analytics
by Recorder |
4 channels: Supports detecting brightness levels, color
cast, defocus, overexposure, contrast levels, black and
white |
| Scene Changing |
| Scene Changing by
Recorder |
1 channel |
| Irregular Black Block Masking |
| Irregular Black Block
Masking by Recorder |
1 channel |
| EPTZ |
| EPTZ by Recorder |
1 channel |
| Audio and Video |
| Analog Camera Input |
4 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect |
| Camera Input |
1. CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20
fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps;
1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps;
5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3
MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3
MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input |
Up to 8 channels of IPC access
4 IP channels by default + 4 channels (analog channels
are converted to IP channels)
Incoming bandwidth: 64 Mbps, recording bandwidth:
64 Mbps and outgoing bandwidth: 64 Mbps
*After IP extension is enabled, EPTZ, Video Quality
Analytics, Scene Changing, Face Recognition, Face
Detection, SMD, Perimeter Protection, QuickPick 2.0
and Privacy Protection cannot be used. |
| Encoding Capacity |
Encode Enhancement disabled：
Main stream:
the 1st channel 4K@(1 fps–10 fps), others 4K@(1 fps–7
fps);
the 1st channel 5 MP@(1 fps–20 fps), others 5 MP@(1
fps–12 fps);
the 1st channel 4K-N/4 MP/3 MP@(1 fps–20 fps),
others 4K-N/4 MP/3 MP@(1 fps–15 fps);
4K@(1 fps–8 fps); 6 MP@(1 fps–10 fps); 5 MP@(1
fps-15 fps);4M-N/1080p/720p/960H/D1/CIF@(1 fps– 25/30 fps)
Sub stream:
960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
Encode Enhancement enabled：
Main stream:
the 1st channel 4K@(1 fps–15 fps), others 4K@(1 fps–7
fps);
the 1st channel 6 MP@(1 fps–20 fps), others 6 MP@(1
fps–10 fps);
the 1st channel 5 MP@(1 fps–25 fps), others 5 MP@(1
fps–12 fps);
the 1st channel 4K-N/4 MP/3 MP@(1 fps–25/30 fps),
others 4K-N/4 MP/3 MP@(1 fps–15 fps);
4K/6 MP@(1 fps–10 fps);5 MP@(1 fps-15 fps); 4M-N/
1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream:
960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
*When Encode Enhancement is enabled, EPTZ, Video
Quality Analytics, Scene Changing, Face Recognition,
Face Detection, Perimeter Protection, QuickPick 2.0 and
Privacy Protection cannot be used. |
| Dual-stream |
Yes |
| Video Bit Rate |
32 kbps–6144 kbps |
| Audio Sampling |
8 kHz, 16 bit |
| Audio Bit Rate |
64 kbps |
| Video Output |
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280× 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for
VGA and HDMI is configurable. |
| Multi-screen Display |
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/8/9 |
| Third-party Camera Access |
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard |
| Video Compression |
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression |
G.711a; G.711u; PCM |
| Network
|
| Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP;
DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm
Server; P2P; Auto Registration; IP Search (Supports IP
camera, DVR, NVS, etc.) |
| Mobile Phone Access |
iOS; Android |
| Interoperability |
ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser |
Chrome; IE; Safari; Edge; Firefox |
| Recording Playback |
| Record Mode |
General; alarm; motion detection; intelligent; POS |
| Recording Playback |
1/4 |
| Backup Method |
USB device and network |
| Playback Mode |
Instant playback; general playback; event playback; tag
playback; smart playback |
| Alarm |
| General Alarm |
Motion detection; alarm box; HDCVI alarm; camera
external alarm; network alarm; PIR alarm |
| Anomaly Alarm |
Error (no disk, disk error, low space, low quota space;
network disconnection; IP conflict; MAC conflict); video
loss; video tampering; camera offline |
| Intelligent Alarm |
Face detection; face recognition; perimeter protection;
SMD Plus |
| Alarm Linkage |
Record; snapshot (panoramic); IPC external alarm
output; audio; buzzer; log; preset; email |
| Ports |
| Audio Input |
1-channel RCA
4-channel BNC (Coaxial Audio) |
| Audio Output |
1-channel RCA |
| Two-way Talk |
Yes (share the same audio input with the first channel) |
| Disk Interface |
1 SATA port. up to 16 TB. This limit varies depending on
the environment temperature. |
| RS-485 |
1 |
| USB |
2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI |
1 |
| VGA |
1 |
| Network Port |
1 (10/100 Mbps Ethernet port, RJ-45) |
| General |
| Power Supply |
12 VDC, 2 A |
| Power Consumption |
<7 W (without HDD) |
| Net Weight |
0.96 kg (2.12 lb) |
| Gross Weight |
1.37 kg (3.03 lb) |

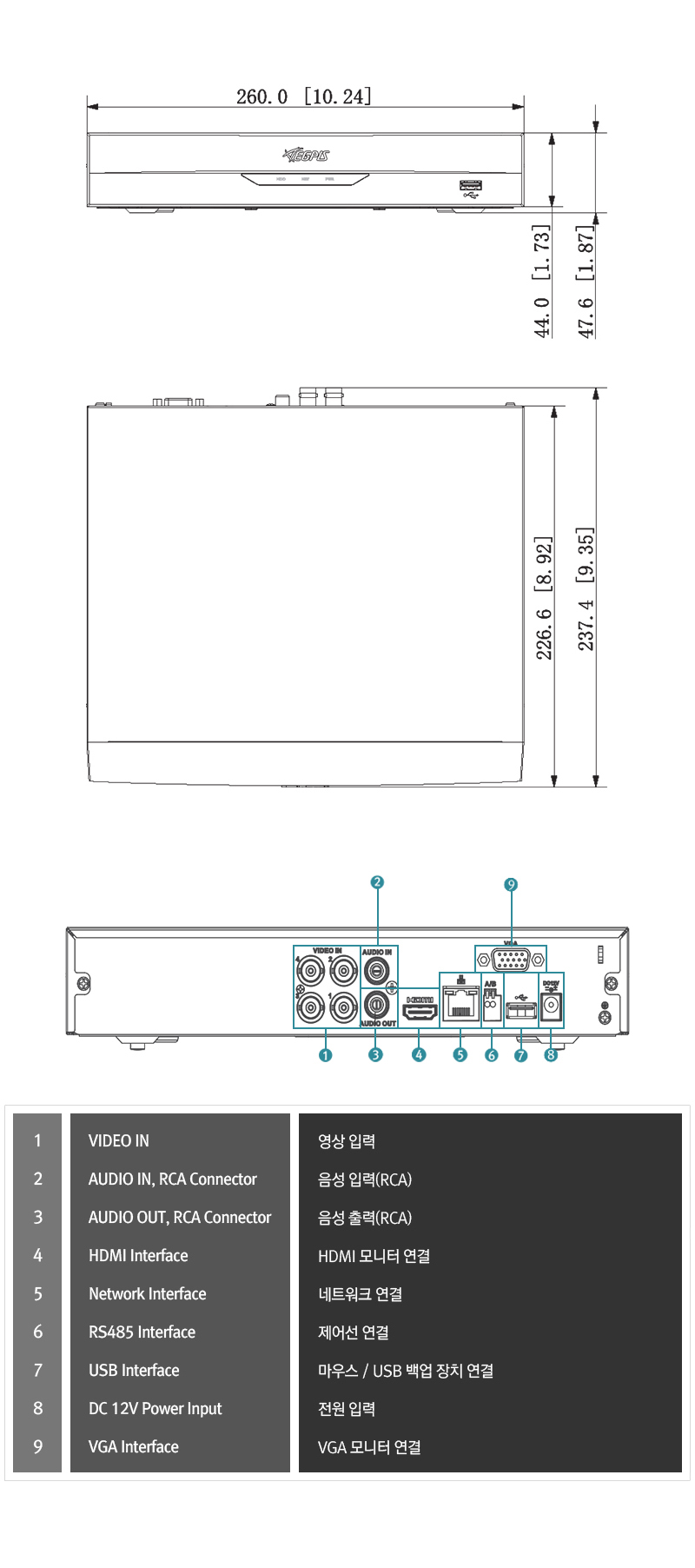

| Product Dimensions |
260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.37"× 1.87") (W × D × H) |
| Packaging Dimensions |
333.0 mm × 89.0 mm × 315.0 mm (13.12" × 3.51"× 12.41") (W × D × H) |
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity |
10%–90% (RH), non-condensing |
| Installation |
Desktop |
| Certifications |
CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN
61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035 |
 |
|
|---|
