| Sensor |
| Pixel |
5 MP |
| Sensor Size |
1/2.7" CMOS |
| Min. Illumination |
0.02 lux (F2.0, AGC ON)
0 lux (IR on) |
| Lens |
| Focus |
2.8 mm |
| Lens Mount |
M12 |
| Angle of View (H) |
102.2° |
| Angle of View (V) |
53.9° |
| Angle of View (D) |
124.8° |
| Illuminator |
| Illuminator Number |
One IR illuminator |
| Illumination Distance |
20m |
| Lifetime |
≥ 60000 hours |
| Video |
| Resolution |
5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps:
2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V) |
| Frame Rate |
TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps,
1080P@25fps, 1080P@30fps
AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVBS: PAL, NTSC |
| Shutter Time |
PAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s |
| Image |
| Exposure Mode |
Four modes: Global (default), BLC, HLC, DWDR |
| Day/Night |
Three modes: Auto (default), Day, Night |
| Digital Noise Reduction |
2D |
| White Balance |
Two modes: Auto (default), Manual |
| WDR |
DWDR |
| Smart IR |
Support |
| Flip |
Supports 180°horizontal flip, 180°vertical flip |
| Interface |
| Power Interface |
5.5 mm Power Interface |
| Video Output |
BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment |
| Temperature |
-30°C to 60°C (-22°F to 140°F) |
| Humidity |
≤ 95% RH (non-condensing) |
| Surge Protection |
4 KV for power, 4 KV for video output interfaces |
| General |
| Power |
DC 12 V ± 25% |
| Power Consumption |
MAX 3.6W |
| Mount |
Wall Mount, Pole Mount, Corner Mount, Pendant Mount |
| Dimensions |

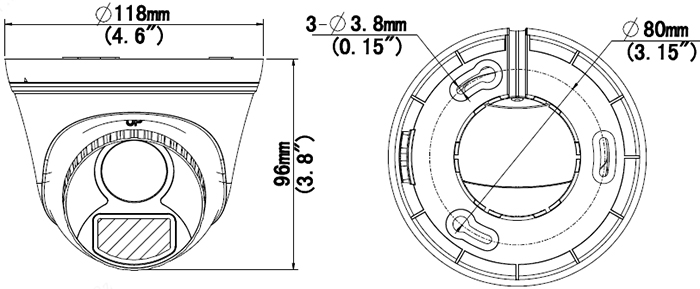

Φ118mm*96mm (diameter*height) |
| Material |
Plastic |
| Weight |
182g(0.401lb) |
| OSD Menu Language |
11 Languages: English, German, Spanish (Latin America), French, Italian,
Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish |
| Certification |
| EMC |
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035), FCC (FCC 47
CFR part15 B) |
| Safety |
CE-LVD (EN 62368-1) |
| Environment |
CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection |
IP67 (IEC 60529) |
 |
|
|---|
|
