| Camera |
| Image Sensor |
1/2.9" CMOS |
| Max. Resolution |
1920 (H) × 1080 (V) |
| ROM |
128 MB |
| RAM |
256 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.0006 lux@F1.0 |
| S/N Ratio |
>56 dB |
| Illumination Distance |
Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control |
Auto;Manual |
| Illuminator Number |
4 (Warm light) |
| Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° |
| Lens |
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
2.8 mm / 3.6 mm / 6 mm |
| Max. Aperture |
F1.0 |
| Field of View |
2.8 mm: H: 101°; V: 53°; D: 119°
3.6 mm: H: 81°; V: 44°; D: 95°
6 mm: H: 53°; V: 29°; D: 61° |
| Iris Control |
Fixed |
| Close Focus Distance |
2.8 mm: 1.1 m (3.61 ft)
3.6 mm: 1.7 m (5.58 ft)
6 mm: 3.4 m (11.15 ft) |
| DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8 mm |
47.1 m
(154.53 ft) |
18.9 m
(62.01 ft) |
9.4 m
(30.84 ft) |
4.7 m
(15.42 ft) |
| 3.6 mm |
55.7 m
(182.74 ft) |
22.3 m
(73.16 ft) |
11.1 m
(36.42 ft) |
5.6 m
(18.37 ft) |
| 6 mm |
85.7 m
(281.17 ft) |
34.3 m
(112.53 ft) |
17.1 m
(56.10 ft) |
8.6 m
(28.22 ft) |
| |
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence |
| IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the
classification and accurate detection of vehicle and
human); |
| SMD |
SMD Plus |
| Smart Search |
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos |
| Video |
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported
by the sub stream) |
| Smart Codec |
Smart H.265+; Smart H.264+ |
| Video Frame Rate |
Main stream: 1920× 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30
fps)
*The values above are the max. frame rates of
each stream; for multiple streams, the values will be
subjected to the total encoding capacity. |
| Stream Capability |
2 streams |
| Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280× 720); D1 (704 × 576/704 × 480);
VGA (640 × 480); CIF
(352 × 288/352 × 240)
|
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps |
| Day/Night |
Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
120 dB |
| White Balance |
Auto; natural; street lamp; outdoor; manual; regional
custom |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D NR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) |
Yes (4 areas) |
| Smart Illumination |
Yes |
| Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower) |
| Mirror |
Yes |
| Privacy Masking |
4 areas |
| LDC |
Yes |
| Audio |
| Built-in MIC |
Yes, built-in Mic |
| Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
| Alarm |
| Alarm Event |
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; tripwire; intrusion; audio
detection; voltage detection; SMD; security exception |
| Network |
| Network Port |
RJ-45 (10/100 Base-T) |
| SDK and API |
Yes |
| Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;
RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour;
Auto Registration |
| Interoperability |
ONVIF (Profile S & Profile G &Profile T); CGI |
| User/Host |
20 (Total bandwidth: 48 M) |
| Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser |
IE; Chrome; Firefox |
| Management Software |
Smart PSS Lite; DSS; DMSS |
| Mobile Client |
iOS;Android |
| Cyber Security |
Video encryption;Firmware encryption;Configuration
encryption;Digest;WSSE;Account lockout;Security
logs;IP/MAC filtering;Generation and importing of X.509
certification;syslog;HTTPS;802.1x;Trusted oot;Trusted
execution;Trusted upgrade;Session security;Security
warning |
| Certification |
| Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU; |
| Power |
| Power Supply |
12 VDC; PoE |
| Power Consumption |
Basic: 1.5 W (12 VDC); 1.9 W (PoE);
Max. : 5.3 W (12 VDC); 6.3 W (PoE) (H.265+ intelligence
on + WDR + illuminator intensity) |
| Environment |
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity |
≤95% (RH), non-condensing |
| Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity |
≤95% (RH), non-condensing |
| Protection |
IP67 |
| Structure |
| Casing |
Metal |

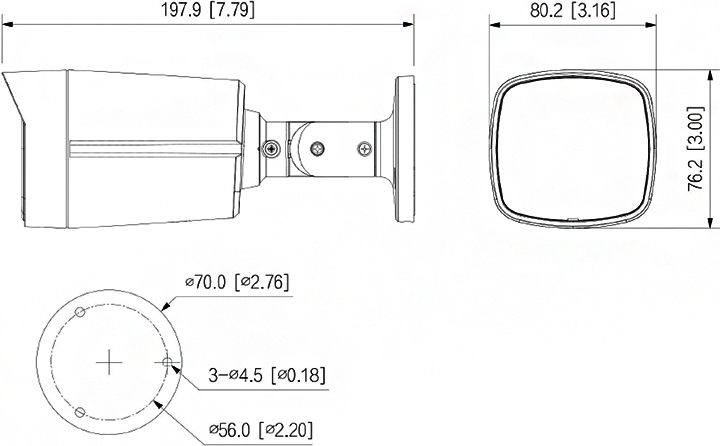

| Product Dimensions |
197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00")
(L × W × H) |
| Net Weight |
0.56 kg (1.23 lb) |
| Gross Weight |
0.71 kg (1.57 lb) |
 |
|
|---|
