| Camera |
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
1920 (H) × 1080 (V) |
| ROM |
16 MB |
| RAM |
64 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.01 lux@F2.0 (Color,30 IRE)
0.001 lux@F2.0 (B/W,30 IRE)
0 lux (Illuminator on) |
| S/N Ratio |
>56 dB |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control |
Auto;Manual |
| Illuminator Number |
1 (IR LED) |
| Angle Adjustment |
Pan: 0°–360° /
Tilt: 0°–90° /
Rotation: 0°–360° |
| Lens |
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
2.8 mm / 3.6 mm |
| Max. Aperture |
F2.0 |
| Field of View |
2.8 mm: H: 101°; V: 54°; D: 119°
3.6 mm: H: 86°; V: 47°; D: 103° |
| Iris Control |
Fixed |
| Close Focus Distance |
2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 0.9 m (2.95 ft) |
| DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8 mm |
45.5 m
(149.28 ft) |
18.2 m
(59.71 ft) |
9.1 m
(29.86 ft) |
4.6 m
(15.09 ft) |
| 3.6 mm |
52.4 m
( 171.92 ft) |
21.0 m
( 68.90 ft) |
10.5 m
( 34.45 ft) |
5.2 m
( 17.06 ft) |
| |
*DORI (Detect, Observe, Recognize, Identify) is a standard system
(EN-62676-4) for defining the ability of a person viewing the
video to distinguish persons or objects within a covered area.
The numbers in this table do not reflect intelligent function
distances. For intelligent function distances, refer to installation
and commissioning manual/project design tool. |
| Intelligence |
| Human Detection |
Support the classification and accurate detection of
human |
| Smart Search |
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos |
| Video |
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported
by sub stream) |
| Smart Codec |
Smart H.265+; Smart H.264+ |
| Video Frame Rate |
Main stream: 1920 × 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30
fps)
*The values above are the max. frame rates of
each stream; for multiple streams, the values will be
subjected to the total encoding capacity. |
| Stream Capability |
2 streams |
| Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 32 kbps–4096 kbps;
H.265: 12 kbps–4096 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
DWDR |
| White Balance |
Auto; natural; street lamp; outdoor; manual; regional
custom |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D NR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) |
Yes (4 areas) |
| Smart Illumination |
Yes |
| Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower) |
| Mirror |
Yes |
| Privacy Masking |
4 areas |
| Audio |
| Built-in MIC |
Yes, built-in Mic |
| Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
| Alarm |
| Alarm Event |
Network disconnection; IP conflict; illegal access;
motion detection; video tampering; audio detection;
SMD (human); security exception |
| Network |
| Network Port |
RJ-45 (10/100 Base-T) |
| SDK and API |
Yes |
| Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;
RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast;
ICMP; IGMP; P2P |
| Interoperability |
ONVIF (Profile S & Profile T); CGI |
| User/Host |
6 (Total bandwidth: 24 M) |
| Storage |
FTP |
| Browser |
IE; Chrome; Firefox |
| Management Software |
Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client |
iOS;Android |
| Security |
Digest;WSSE;Account lockout;Security logs;Generation
and importing of X.509 certification;HTTPS;Trusted
boot;Trusted execution;Trusted upgrade |
| Certification |
| Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU; |
| Power |
| Power Supply |
12 VDC/PoE (802.3af) |
| Power Consumption |
Basic: 1.3 W (12 VDC), 1.6 W (PoE);
Max.: 3.3 W (12 VDC), 4.2 W (PoE) (H.265 + intelligence
on + WDR+ IR intensity) |
| Environment |
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity |
≤95% (RH), non-condensing |
| Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity |
≤95% (RH), non-condensing |
| Protection |
IP67 |
| Structure |
| Casing Material |
Metal |

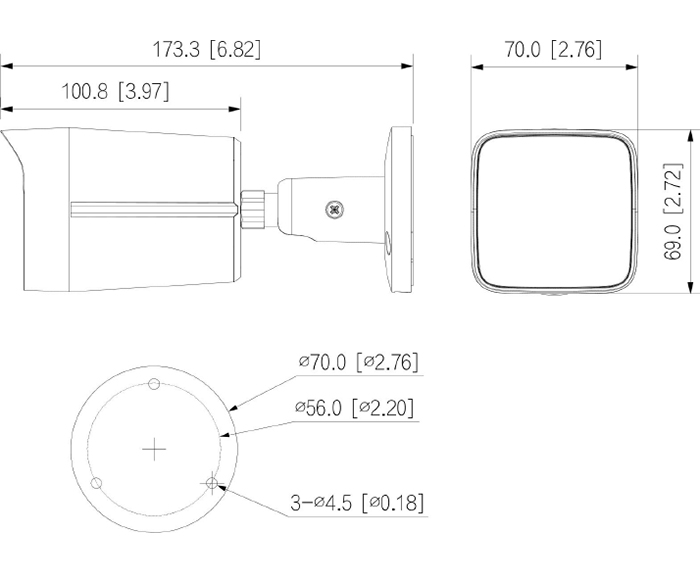

| Product Dimensions |
173.3 mm × 70 mm × 70 mm (6.82" × 2.76" × 2.76") (L× W × H) |
| Net Weight |
0.44 kg (0.97 lb) |
| Gross Weight |
0.55 kg (1.21 lb) |
 |
|
|---|
