| Camera |
| Image Sensor |
1/3" CMOS |
| Max. Resolution |
2560 (H) × 1440 (V) |
| ROM |
16 MB |
| RAM |
64 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.03 lux@F2.2 (Color, 30 IRE)
0.003 lux@F2.2 (B/W,30 IRE)
0 lux (Illuminator on) |
| S/N Ratio |
>56 dB |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control |
Auto;Manual |
| Illuminator Number |
2 (IR LED) |
| Angle Adjustment |
Pan: 0°–360° /
Tilt: 0°–78° /
Rotation: 0°–360° |
| Lens |
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
2.8 mm / 3.6 mm |
| Max. Aperture |
F2.2 |
| Field of View |
2.8 mm: H: 90°; V: 49°; D: 106°
3.6 mm: H: 76°; V: 40°; D: 92° |
| Iris Control |
Fixed |
| Close Focus Distance |
2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.4 m (4.59 ft) |
| DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8 mm |
68.0 m
(223.10 ft) |
27.2 m
(89.24 ft) |
13.6 m
(44.62 ft) |
6.8 m
(22.31 ft) |
| 3.6mm |
85.2 m
(279.53 ft) |
34.1 m
(111.88 ft) |
17.0 m
(55.77 ft) |
8.5 m
(27.89 ft) |
| |
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Video |
| Video Compression |
H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec |
Smart H.265+; Smart H.264+ |
| Video Frame Rate |
Main stream: 2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability |
2 streams |
| Resolution |
4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 32 kbps–4096 kbps
H.265: 12 kbps–4096 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
DWDR |
| White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control |
Auto |
| Noise Reduction |
3D NR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) |
Yes (4 areas) |
| Smart Illumination |
Yes |
| Image Rotation |
0°/180° |
| Mirror |
Yes |
| Privacy Masking |
4 areas |
| Alarm |
| Alarm Event |
Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception |
| Network |
| Network Port |
RJ-45 (10/100 Base-T) |
| Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P |
| Interoperability |
ONVIF (Profile S; Profile T); CGI |
| User/Host |
6 (Total bandwidth: 24 M) |
| Storage |
FTP |
| Browser |
IE; Chrome; Firefox |
| Management Software |
Smart PSS Lite; DSS; DMSS |
| Mobile Client |
iOS;Android |
| Cyber Security |
Configuration encryption;Trusted execution;Digest;Security logs;HTTPS;Trusted upgrade;WSSE;Trusted boot;Account lockout;Generation and importing of X.509 certification;Video encryption |
| Power |
| Power Supply |
12 VDC/PoE |
| Power Consumption |
Basic: 1.4 W (12 VDC); 2.1 W (PoE)
Max. (ICR switch+illuminator intensity): 3.0 W (12 VDC); 4.2 W (PoE) |
| Environment |
| Operating Temperature |
–40 °C to +50 °C (–40 °F to +122 °F) |
| Operating Humidity |
≤95% |
| Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity |
≤95% |
| Protection |
IP67 |
| Structure |
| Casing Material |
Plastic |

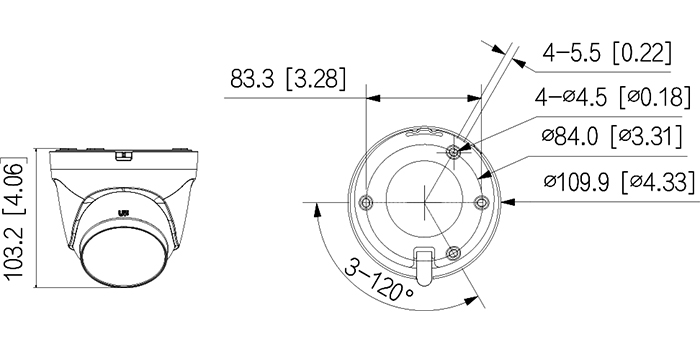

| Product Dimensions |
103.2 mm × Φ109.9 mm (4.06" × Φ4.33") |
| Net Weight |
0.24 kg (0.53 lb) |
| Gross Weight |
0.38 kg (0.84 lb) |
 |
|
|---|
