| Camera |
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
1920 (H) × 1080 (V) |
| ROM |
128 MB |
| RAM |
128 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.005 lux@F1.6 (Color,30 IRE)
0.0005 lux@F1.6 (B/W,30 IRE)
0 lux (Illuminator on) |
| S/N Ratio |
>56 dB |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR LED)
Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control |
Auto;Manual |
| Illuminator Number |
1 (IR LED); 1 (Warm light) |
| Angle Adjustment |
Pan: 0°–360° / Tilt: 0°–78° /
Rotation: 0°–360° |
| Lens |
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
2.8 mm / 3.6 mm |
| Max. Aperture |
F1.6 |
| Field of View |
2.8 mm: H: 104°; V: 55°; D: 124°
3.6 mm: H: 88°; V: 44°; D: 105° |
| Iris Control |
Fixed |
| Close Focus Distance |
2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft) |
| DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8 mm |
44.1 m
(144.69 ft) |
17.7 m
(58.07 ft) |
8.8 m
(28.87 ft) |
4.4 m
(14.44 ft) |
| 3.6 mm |
58.9 m
(193.24 ft) |
23.6 m
(77.43 ft) |
11.8 m
(38.71 ft) |
5.9 m
(19.36 ft) |
| |
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence |
| Human Detection |
Support the classification and accurate detection of human |
| Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video |
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec |
Smart H.265+; Smart H.264+ |
| Video Frame Rate |
Main stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability |
2 streams |
| Resolution |
1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 32 kbps–4096 kbps
H.265: 12 kbps–4096 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
DWDR |
| White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control |
Auto;Manual |
| Noise Reduction |
3D NR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) |
Yes (4 areas) |
| Smart Illumination |
Yes |
| Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror |
Yes |
| Privacy Masking |
4 areas |
| Audio |
| Built-in MIC |
Yes, built-in Mic |
| Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
| Alarm |
| Alarm Event |
Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception |
| Network |
| Network Port |
RJ-45 (10/100 Base-T) |
| SDK and API |
Yes |
| Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability |
ONVIF (Profile S; Profile T); CGI |
| User/Host |
6 (Total bandwidth: 24 M) |
| Storage |
FTP |
| Browser |
IE; Chrome; Firefox |
| Management Software |
Smart PSS Lite; DSS; DMSS |
| Mobile Client |
iOS;Android |
| Security |
Trusted execution;Digest;security logs;HTTPS;trusted upgrade;WSSE;trusted boot;account lockout;generation and importing of X.509 certification |
| Certification |
| Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power |
| Power Supply |
12 VDC/PoE (802.3af) |
| Power Consumption |
Basic: 1.8 W (12 VDC); 2.3 W (PoE)
Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.5 W (12 VDC); 5.6 W (PoE) |
| Environment |
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity |
≤95% |
| Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity |
≤95% |
| Protection |
IP67 |
| Structure |
| Casing Material |
Inner core: Metal+plastic
Cover: Plastic |

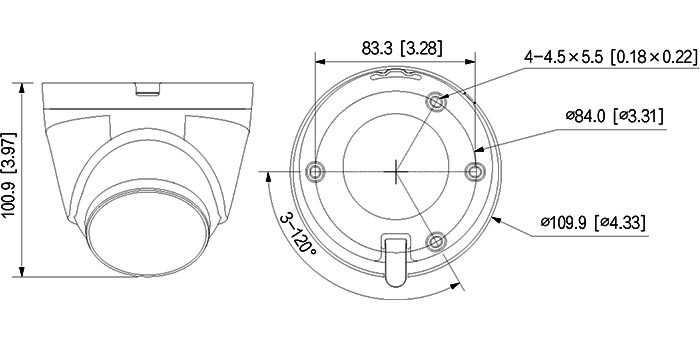

| Product Dimensions |
100.9 mm × Φ109.9 mm (3.97" × Φ4.33") |
| Net Weight |
0.33 kg (0.73 lb) |
| Gross Weight |
0.45 kg (0.99 lb) |
 |
|
|---|
